How To Change A VW Key Battery: A Professional Guide For All Volkswagen Models

To change a Volkswagen key battery, you must identify your fob generation, release the emergency key blade, and use a small flathead screwdriver to pry the casing halves apart or remove the rear battery cover. Most modern VW keys utilize a CR2025 or CR2032 3V lithium coin cell; replacing this ensures consistent signal strength for the immobilizer and keyless entry systems without requiring immediate dealer reprogramming.

Essential Tools and Battery Specifications for Volkswagen Key Fobs

Before attempting to open the key housing, you must verify the specific hardware requirements for your vehicle's generation. Volkswagen has utilized several distinct key designs over the last two decades, ranging from the classic switchblade (flip) style to the sleek, buttonless ID. series fobs. Attempting to force a casing open without understanding the internal clip locations can lead to permanent damage to the Printed Circuit Board (PCB) or the plastic retention tabs.

The primary requirement is a high-quality lithium coin cell battery. While generic batteries are available, brands like Panasonic, Energizer, or Duracell are recommended due to their consistent voltage discharge curves, which prevent intermittent "Key Not Found" errors in push-to-start vehicles.

Pre-Procedure Checklist

• Replacement Battery: CR2025 (Standard for MK7/MK7.5) or CR2032 (Common for MK4-MK6 and MK8/ID models). Check your manual or the old battery before installation.
• Precision Tools: A small flathead screwdriver (2.0mm to 3.0mm) or a dedicated plastic trim removal tool to prevent marring the plastic.
• Clean Workspace: A lint-free microfiber cloth to clean the internal contacts and prevent oils from your skin from transferring to the battery surface.
• Estimated Duration: 2 to 5 minutes.
• Technical Standard: ISO 2032/2025 dimensional compliance for lithium-ion button cells.

Step-by-Step Replacement Instructions for Every VW Fob Generation

The internal architecture of a Volkswagen key varies by the vehicle's platform (e.g., MQB, MEB, or the older PQ35). Follow the specific workflow below that corresponds to your key’s visual design.

Procedure for MK7, MK7.5, and Early MQB Keys (2014–2019)

These keys are characterized by a silver metal loop at the bottom and a flip-out physical key blade. They almost exclusively use the CR2025 battery.

1. Deploy the Flip Key: Press the silver release button to flip out the metal key blade. This exposes the internal channel where the battery cover is secured.
2. Access the Leverage Point: Look into the slot where the key blade usually rests. You will see a small seam where the back cover meets the main body of the fob.
3. Pry the Cover: Insert your flathead screwdriver into the seam near the base of the key (away from the key blade hinge). Apply gentle upward pressure. The rear plastic cover will pop upward, releasing the plastic clips.
4. Remove the Old Battery: Use the tip of the screwdriver to gently lift the CR2025 battery from its housing. Note that the positive (+) side must be facing upward toward you.
5. Install the New Battery: Slide the new CR2025 into the slot at a slight angle to engage the metal contact tabs, then press down until it clicks.
6. Reseal the Case: Align the plastic cover tabs with the fob body and press firmly until you hear a definitive click across the entire surface.

Pro-Tip: If the red LED on the front of the key does not flash when buttons are pressed after replacement, the battery is likely upside down or the contact tabs are compressed. Gently bend the metal tabs upward by a fraction of a millimeter to ensure a tight connection.

Procedure for MK4, MK5, and MK6 Switchblade Keys (1999–2013)

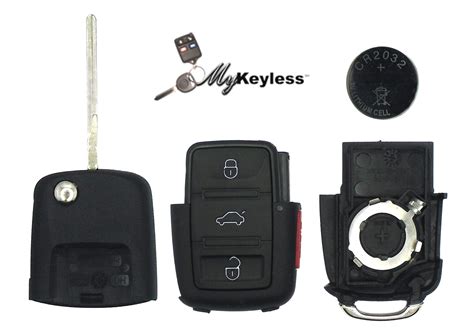

These older keys consist of two distinct halves: the top half containing the mechanical key and transponder, and the bottom half containing the remote control electronics and battery.

1. Separate the Two Halves: Flip the key blade out. Look at the center of the fob where the two plastic pieces join. Insert a screwdriver into the gap in the middle and twist. The fob will split into two sections.
2. Open the Remote Section: Take the bottom half (the one with the buttons) and look at the side profile. There is a seam running down the middle. Use your thumbnail or a flathead tool to pry the two halves of this section apart.
3. Replace the CR2032: These models typically use the thicker CR2032 battery. Remove the old cell and replace it with the positive (+) side facing down into the plastic housing.
4. Reassemble: Snap the two remote halves back together, then slide the remote section back into the key blade section until it clicks into place.

Procedure for MK8 and ID. Series Smart Keys (2020–Present)

The newest Volkswagen keys are button-heavy but lack a traditional flip-out blade. They often feature a high-gloss "piano black" finish that is easily scratched.

1. Release the Emergency Key: Locate the small release slider on the side or back of the fob. Slide it and pull the mechanical emergency key out from the bottom of the unit.
2. Identify the Prying Slot: Once the emergency key is removed, look into the cavity. You will see a small internal notch designed for a screwdriver head.
3. Lift the Rear Panel: Insert your tool into the notch and lever the back panel away from the front buttons. These clips are tighter than previous generations, so even pressure is required.
4. Battery Exchange: Remove the CR2032 battery. These models are highly sensitive to voltage drops; ensure the new battery is wiped clean of fingerprints, as skin oils can cause resistance.
5. Closure: Snap the back panel back on, starting from the top (near the VW logo) and working your way down to the base. Reinsert the mechanical key.

Warning: Do not touch the green PCB inside the MK8 fobs. Static discharge from your fingers can damage the ultra-low-power Bluetooth and RFID chips responsible for the "Keyless Advance" entry system.

Volkswagen Key Fob Compatibility and Technical Specifications

The following table outlines the technical requirements for the most common Volkswagen vehicle platforms. Always verify the battery code embossed on the original factory cell before purchasing a replacement.

Troubleshooting Common Failures and Signal Issues

Even with a fresh battery, your Volkswagen key may occasionally fail to function as expected. Use these diagnostic steps to identify the root cause of the failure.

• Scenario: Red LED flashes, but doors won't unlock.




  • Root Cause: The key has lost its synchronization with the vehicle's Comfort Control Module (CCM) due to a long period without power or the buttons being pressed too many times out of range.
  • Actionable Fix: Insert the physical key into the door lock. Turn it to the unlock position and then the lock position. Alternatively, put the key in the ignition and turn to "On" (don't start the engine), then hold the unlock button for five seconds. This usually resyncs the rolling code.

• Scenario: Key works for buttons, but the car says "No Key Detected" for starting.




  • Root Cause: The passive RFID transponder chip is not receiving enough power or is being shielded by other items in your pocket (like a phone or other RFID cards).
  • Actionable Fix: Hold the key fob directly against the steering column (usually marked with a key icon) while pressing the Start/Stop button. This uses an induction coil to power the key's chip even if the battery is weak or the signal is blocked.

• Scenario: Battery dies within a few weeks of replacement.




  • Root Cause: Internal short circuit or poor quality "off-brand" battery with high self-discharge rates.
  • Actionable Fix: Inspect the battery contacts for corrosion or "green crust." Clean the contacts with 90% isopropyl alcohol and a Q-tip. Ensure you are using a name-brand 3V lithium cell with a shelf life of at least 8-10 years.

• Scenario: Fob buttons feel "mushy" and don't respond.




  • Root Cause: Dust and debris have bypassed the silicone seal, creating a barrier between the plastic button and the micro-switch on the PCB.
  • Actionable Fix: Disassemble the fob and carefully remove the silicone button pad. Clean the plastic housing with compressed air. Do not use liquids directly on the PCB.

Frequently Asked Questions

Do I need to reprogram my VW key after changing the battery?

In 95% of cases, you do not need to reprogram the key. The transponder chip responsible for starting the engine is passive and does not require battery power to retain its coding. Only the remote-entry "rolling code" might occasionally need a simple manual resync if the battery was dead for an extended period.

Can I use a CR2032 instead of a CR2025 in an MK7 key?

While both are 3-volt batteries, the CR2032 is 3.2mm thick, whereas the CR2025 is 2.5mm thick. Attempting to force a CR2032 into a housing designed for a CR2025 can crack the plastic cover or damage the PCB contacts. Always use the specific thickness designated for your fob model.

Why does my dashboard still say "Change Key Battery" after I replaced it?

This message is often stored in the car's gateway module. To clear it, you usually need to perform a full lock/unlock cycle with the new battery installed. If the message persists, it may indicate that the replacement battery you installed is already below the 3.0V threshold (standard for "new" batteries is actually around 3.2V to 3.3V).

What should I do if the small red light on the key is constantly on?

A constantly lit LED indicates a stuck button or an internal short on the circuit board. This will drain a new battery in hours. Open the fob and check if the silicone membrane is misaligned or if there is any visible moisture damage on the green circuit board.

Maintain Your Volkswagen Key Performance

Regularly replacing your key battery every two years prevents the inconvenience of being locked out or unable to start your vehicle. For more advanced technical support or replacement key shells, consult your local certified Volkswagen service center or a qualified automotive locksmith.
