How To Fix Cable On Garage Door: Complete Step-by-Step Repair Guide

Fixing a snapped or slipped garage door cable requires releasing all tension from the torsion spring system and strictly following mechanical safety protocols to prevent catastrophic injury. This comprehensive guide covers the precise tools, tension-winding mechanics, and replacement steps needed to restore your sectional garage door safely and efficiently.

Pre-Operation & Safety Equipment Checklist

A snapped or derailed garage door cable is a high-load structural emergency. Before touching any hardware, you must assemble the correct tools and understand the safety standards associated with high-tension torsion springs. Working on these systems without preparation risks severe physical trauma due to stored rotational energy.

• Essential Tools and Materials:


  • Two heavy-duty winding bars (solid steel, 1/2-inch diameter by 18 inches long)
  • Heavy-duty work gloves and safety glasses
  • Locking pliers (vise grips)
  • Socket set and wrenches (typically 7/16-inch, 9/16-inch, and 1/2-inch)
  • Replacement aircraft cable matching your door weight and height (usually 1/8-inch or 3/32-inch 7x19 galvanized steel)
  • Sturdy ladder and a hammer or punch tool
• Prerequisite Standards and Scope:


  • Ensure the garage door is fully closed and locked in place before starting.
  • Never use screwdrivers, rebar, or hollow pipes as winding bars; they can bend or shatter under torsion load.
  • Estimated duration: 1.5 to 3 hours for a complete single-car or double-car cable swap.
  • Estimated budget: $20 to $50 for standard replacement cables and hardware.

Step-by-Step Garage Door Cable Replacement Workflow

Step 1: Secure the Garage Door and Disconnect the Opener

Before managing cables, you must ensure the door cannot move unexpectedly. Close the garage door completely. If one cable is already snapped, the door may be crooked; use wood shims or a temporary brace under the bottom panel to keep it level. Unplug the automatic garage door opener from the ceiling outlet to prevent accidental activation during the repair. Attach locking pliers to the vertical track immediately above the third roller from the bottom on both sides. This creates a mechanical stop that prevents the door from lifting if the springs release energy.

Step 2: Release Tension from the Torsion Springs

Warning: Torsion springs store immense rotational force. Never stand directly in the path of the winding bars, as a slipping bar can cause severe facial or bodily injury.

Locate the winding cone on the stationary center bracket above the door. Insert one steel winding bar fully into the lower hole of the winding cone. Hold the bar firmly, and loosen the two set screws on the winding cone using your wrench. Insert the second winding bar into the perpendicular hole above the first. Alternating the bars, carefully unwind the spring by pulling down on the active bar, removing the top bar, and inserting the next bar into the lower hole. Count the exact number of quarter-turns or full turns you remove (standard doors usually require 7 to 8 full turns, or roughly 28 to 32 quarter-turns). Repeat this process for the second spring if your system utilizes a dual-spring setup.

Step 3: Remove the Old Cable and Bottom Bracket

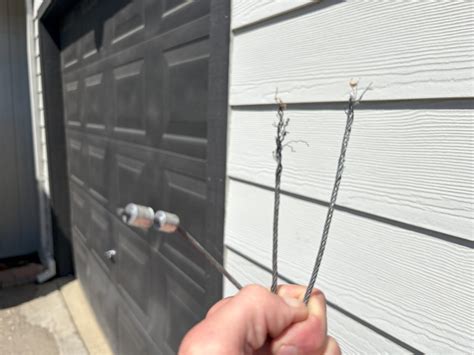

Inspect how the old cable is routed. The cable originates from the bottom corner bracket, runs vertically past the track rollers, and wraps around the cable drum mounted on the torsion tube near the top corners. Unhook the looped end of the cable from the pin on the bottom fixture bracket attached to the lowest door panel. If the cable is frayed, rusted, or completely snapped, carefully pull the remaining segments away from the door and the drum.

Step 4: Install the New Cable and Reset the Drum

Take your new replacement aircraft cable and slide the looped end over the pin on the bottom bracket. Route the cable straight up, keeping it on the outside of the track rollers to prevent binding. Loosen the set screws on the cable drum at the top end of the torsion shaft. Thread the loose end of the cable into the slot on the drum. Rotate the drum manually until the cable seats neatly into the first interior groove of the drum. Rotate the drum upward until the cable is taut against the bottom bracket. Tighten the drum set screws hand-tight, then wrench-tighten them an additional quarter to half-turn to bite securely into the solid steel shaft.

Step 5: Re-Tension the Torsion Springs and Test

With the new cable securely clamped in the drum, insert your winding bars back into the winding cone. Wind the spring in the opposite direction of unwinding, matching the exact number of turns you recorded earlier (e.g., 30 quarter-turns for a standard 7-foot high door). As you wind, tap the winding cone gently with a hammer or punch toward the center bracket to ensure the coils pack tightly together. Once fully wound, tighten both set screws on the winding cone securely against the shaft. Remove the locking pliers from the vertical tracks, plug the garage door opener back in, and manually lift the door halfway to check balance. The door should hold its position without falling or rising on its own.

Garage Door Cable Types and Specifications Matrix

Common Site Failures and Field Fixes

• Root Cause: Cable slips off the drum during operation.


  • Actionable Fix: This typically happens if the door was opened manually while loose or if the cable tension was lost. Unwind the springs, re-seat the cable tightly into the drum grooves, and apply locking pliers to hold the shaft while re-tensioning the springs.
• Root Cause: One side of the garage door is higher than the other.


  • Actionable Fix: Uneven lifting usually stems from unequal cable winding or a slipping drum. Check that both cables are seated identically in their respective drums and that the torsion tube has not shifted laterally. Adjust the slip-resistant set screws on the drum of the lagging side.
• Root Cause: Cable frays repeatedly within a few months of replacement.


  • Actionable Fix: Misaligned tracks or worn-out bottom brackets cause the cable to rub against structural framing or track edges. Inspect track alignment using a level, and replace any bent bottom brackets or worn nylon rollers before installing a new cable.

Frequently Asked Questions

Can I replace just one garage door cable if only one snapped?

While it is mechanically possible to replace only the snapped cable, it is rarely recommended. Cables wear out at roughly the same rate due to identical load cycles and environmental corrosion. If one cable has failed, the remaining cable has likely suffered structural fatigue and will likely snap soon after. Replacing both cables simultaneously ensures balanced tension and longevity.

How do I know what size cable my garage door needs?

Garage door cable selection depends primarily on the overall weight of the door and the height of the opening. Most standard residential garage doors use 1/8-inch diameter cables built with 7x19 strand configurations. Always measure the length and diameter of your old intact cable using digital calipers to ensure exact compatibility with your existing cable drums.

Is it safe to fix a garage door cable myself?

Fixing garage door cables is moderately dangerous because it requires interacting with high-tension torsion springs. If you follow strict safety guidelines, use proper steel winding bars, and release spring tension completely before unhooking hardware, a capable DIYer can complete the job. However, if you feel uncomfortable handling torsion springs, hire a certified professional technician.

Why did my garage door cable snap suddenly?

Cables typically snap due to normal metal fatigue over thousands of open-and-close cycles, accelerated by rust from moisture exposure. Lack of lubrication on the moving pulleys and drums, or a sudden obstruction in the door track, can also create excessive friction that weakens the aircraft strands until failure occurs.

How many turns do I need to put back on my torsion springs?

The exact number of turns depends on the height of your door and the circumference of your cable drums. Standard 7-foot tall doors utilizing 4-inch drums generally require 7.5 to 8 full revolutions (30 to 32 quarter-turns). Always refer to the sticker on your torsion spring anchor bracket for precise manufacturer specifications before winding.
