How To Level Mowing Deck: The Ultimate Precision Calibration Guide

Leveling a mowing deck requires a precise, systematic alignment of the blade-tip plane relative to the flat working surface rather than the tractor frame. Achieving a proper pitch—typically a 1/4-inch to 3/8-inch downward drop at the front blade tips compared to the rear—prevents double-cutting, eliminates scalp marks, and guarantees a pristine, professional turf finish.

Pre-Operation & Equipment Checklist

Proper preparation ensures both safety and measurement accuracy when calibrating a mower deck. Even minor variances in tire pressure or an uneven work surface will throw off calibration measurements, rendering the adjustment process ineffective.

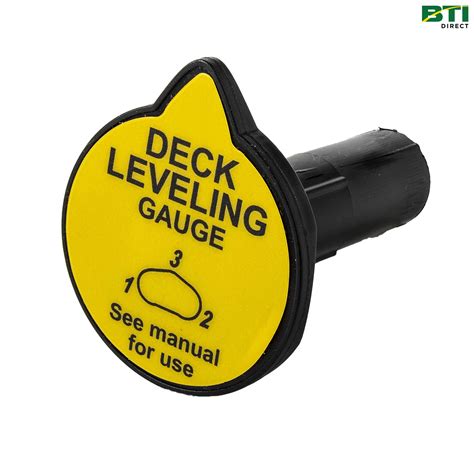

• Essential Gear & Tools: Heavy-duty work gloves, a tire pressure gauge, an air compressor or pump, a socket wrench set (typically 1/2-inch or 9/16-inch for deck hanger bolts), a reliable deck-leveling gauge (or a calibrated tape measure), and wooden blocks or jack stands if raising the chassis.
• Mandatory Prerequisite Knowledge: The tractor must be parked on a completely flat, hard surface such as a concrete garage floor. The engine must be turned off, the ignition key removed, and the spark plug disconnected for safety on walk-behind or riding units. All tires must be inflated to their exact, recommended manufacturer PSI specifications because fluctuating pressures directly alter deck height.
• Duration & Budget Benchmarks: This maintenance procedure takes approximately 30 to 45 minutes for a standard riding mower or zero-turn radius (ZTR) machine. The monetary cost is zero if utilizing household tools, or under twenty dollars if purchasing a specialized magnetic deck-height gauge.

Step-by-Step Deck Calibration Workflow

Step 1: Secure the Tractor and Standardize Tire Pressures

Park the mower on a level, hard concrete surface and set the parking brake. Inspect all four pneumatic tires with a digital or dial tire pressure gauge.

1. Adjust front and rear tires to the exact pounds per square inch (PSI) stated on the sidewall or in the owner's manual.
2. Lower the mower deck to its lowest or a mid-range preset cutting height using the height adjustment lever, then place the lever into the transport or maintenance lock position if specified by the manufacturer.
3. Turn the blades so they point straight out from the sides of the tractor (left-to-right orientation) perpendicular to the frame.

Warning: Never slide your hands or fingers underneath an unpropped, suspended mower deck. Always disconnect the spark plug lead to prevent accidental engine rollover or ignition.

Step 2: Measure Side-to-Side Blade Tip Clearance

Take your deck-leveling tool or tape measure and position it under the right edge of the mowing deck.

1. Measure the distance from the bottom cutting edge of the right blade tip straight up to the flat concrete floor. Record this exact millimetre or fractional-inch measurement.
2. Rotate the blade safely from underneath or via the engine pulley (with spark plug disconnected) so it points out the left side of the deck.
3. Measure the bottom cutting edge of the left blade tip to the floor.
4. Compare the left and right measurements. They must match within a tolerance of 1/8 inch. If they differ, locate the side-to-side adjustment turnbuckle, hanger nut, or eccentric cam on the suspension linkage. Tighten or loosen the appropriate side hanger until both left and right blade tips are equidistant from the ground.

Step 3: Measure Front-to-Back Blade Pitch (The Cutting Angle)

Rotate both outer blades so they align longitudinally, pointing directly forward and backward parallel to the frame of the machine.

1. Measure the distance from the tip of the front blade (pointing toward the front bumper) to the concrete floor.
2. Measure the distance from the tip of the rear of that same blade (pointing toward the rear grass chute or wheels) to the concrete floor.
3. Calculate the pitch difference. Industry standard dictates that the front blade tip must sit 1/4 inch to 3/8 inch lower than the rear blade tip. This forward rake ensures the blade cuts the grass only once, preventing frayed grass tips and heavy engine drag.
4. Locate the front adjustment rod, yoke nuts, or front hanger bracket. Turn the adjustment nuts clockwise to raise the front of the deck or counterclockwise to lower it until the desired 1/4-inch forward rake is achieved.

Step 4: Verify All Suspension Linkage Adjustments

Re-check all four measurement points—left blade tip, right blade tip, front blade tip, and rear blade tip—to ensure that tightening one adjustment bolt did not inadvertently shift another parameter.

1. Raise and lower the deck through its entire height range using the manual lift lever or foot pedal to ensure the linkage moves freely without binding, catching, or slipping out of alignment.
2. Situate the deck back at your standard target cutting height (typically 3 inches) and confirm the measurements one final time.
3. Tighten all locknuts, jam nuts, and security bolts on the suspension arms to prevent vibration from loosening the settings during high-speed mowing operations.

Mower Deck Calibration Specifications and Parameters

Common Site Failures & Field Fixes

Even with careful execution, certain mechanical variables can disrupt a clean setup.

• Root Cause: The mower continues to scalp on turns despite a perfectly leveled deck.


  • Actionable Fix: Inspect the anti-scalp wheels or deck rollers. If they are adjusted too low, they will drag across undulating turf and dig into high spots. Raise the anti-scalp wheels so they float approximately 1/4 inch to 1/2 inch off the ground when the machine is on a flat surface.
• Root Cause: Measurements drift out of alignment immediately after the first mowing session.


  • Actionable Fix: Jam nuts or locking nuts on the threaded suspension rods were not fully torqued down after calibration. Re-level the deck, hold the adjustment rod with pliers or a wrench, and tighten the secondary jam nut firmly against the bracket to lock the threads in place.
• Root Cause: Uneven cutting persists even though left, right, and front measurements match specifications.


  • Actionable Fix: One or both of the cutting blades is physically bent or unbalanced from striking a rock or tree root. Remove the blades, check them on a wall balancer or flat surface, and replace any bent or damaged cutting components.

Frequently Asked Questions

Should the mower deck be leveled with the grass or on a hard surface?

Always level your mower deck on a hard, flat surface like a garage floor or driveway. Measuring on uneven grass introduces variables such as soil compaction, thatch depth, and blade of grass variations that compromise measurement accuracy.

Why does my mower deck need a forward pitch?

A forward pitch ensures that the front edge of the blade cuts the grass cleanly while the rear of the blade passes over the clippings without striking them a second time. This reduces power consumption, prevents clumping, and stops the brown, frayed tips associated with double-cutting.

How often should I check and level my mower deck?

You should verify and level your mower deck at least once per season—ideally during spring startup maintenance. Additionally, check the deck level immediately if you strike a hard object like a tree stump, rock, or exposed irrigation head.

Do zero-turn mowers require a different leveling process than standard lawn tractors?

The fundamental geometry remains identical, but the hardware differs. Traditional lawn tractors usually utilize a side-to-side rocker arm and a front hanger rod, whereas zero-turn mowers typically feature a four-point chain or deck-hanger pin system that must be adjusted independently at all four corners.

Keep your turf looking immaculate and maintain optimal engine performance by performing a complete deck alignment check at the start of every heavy mowing season.
