How To Light Pilot On Fireplace: A Step-by-Step Technical Guide
Lighting a gas fireplace pilot involves locating the control valve, turning it to the pilot position, depressing the safety valve while igniting the sparker, and holding the button for 30 to 60 seconds until the thermocouple generates enough millivoltage to keep the gas valve open. Understanding your specific valve type—whether millivolt standing pilot or electronic intermittent ignition—is critical to ensuring safe and efficient operation before the heating season begins.
Pre-Operation Safety & Equipment Checklist
Before attempting to ignite your gas fireplace pilot, it is essential to evaluate the appliance environment and gather necessary safety equipment. Gas fireplaces require meticulous handling to prevent gas leaks, improper combustion, or carbon monoxide accumulation.
- Essential Gear & Tools: Flashlight, long-reach butane lighter or fireplace match, soft-bristle brush, multimeter (optional, for checking thermocouple output), and manufacturer user manual.
- Mandatory Prerequisite Knowledge & Standards: Familiarity with natural gas or propane odor profiles, verification that the glass enclosure is tightly sealed and clean, and confirmation that carbon monoxide detectors are active in the immediate living space.
- Estimated Budget & Duration Benchmarks: Time commitment ranges from 5 to 15 minutes for a standard manual standing pilot ignition. No financial investment is required unless replacement parts such as a thermocouple or thermopile are necessary (typically ranging from twenty to fifty dollars).
Step-by-Step Guide to Safely Lighting Your Fireplace Pilot
Step 1: Locate and Inspect the Gas Control Valve and Access Panel
Locate the gas control panel, which is typically hidden behind the decorative louver, grille, or bottom faceplate beneath the firebox. Remove the panel carefully to expose the gas control valve knob, the pilot assembly lines, and the igniter button. Inspect the area thoroughly using a flashlight to check for any accumulation of dust, spider webs, or pet hair around the burner and pilot hood.
Warning: If you smell a strong odor of gas that persists for more than a few moments, do not attempt to light the pilot. Immediately evacuate the home, refrain from operating any electrical switches, and call your local gas utility provider or a certified gas technician from a safe distance.
Step 2: Turn the Control Knob to the Off Position and Clear Lines
Locate the primary gas control knob, which features distinct markings for OFF, PILOT, and ON. Turn the knob clockwise from its current setting to the OFF position. Once turned off, wait a minimum of five minutes to allow any residual unburned gas to completely dissipate from the firebox and combustion chamber.
Pro-Tip: Leaving the valve in the off position for a full five minutes prevents accidental minor flare-ups caused by trapped gas pockets lingering near the burner ports.

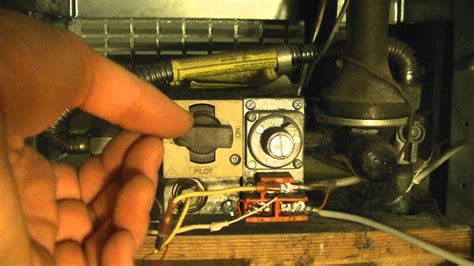

Step 3: Set the Control Valve to Pilot and Depress the Safety Plunger
Rotate the control knob counterclockwise from OFF to the PILOT position. Push the control knob inward firmly and hold it down completely. This action manually opens the safety valve, allowing gas to flow specifically to the pilot assembly tube while bypassing the main burner.
Step 4: Ignite the Pilot Flame and Hold the Safety Valve
While continuing to hold the control knob firmly depressed, press the red or black piezoelectric igniter button repeatedly until you see a spark jump at the pilot hood. Simultaneously, if your unit lacks a built-in piezo sparker, insert a long-reach lighter or fireplace match near the pilot assembly. Keep the control knob pressed down firmly for 30 to 60 seconds after the pilot flame successfully lights.
Warning: Never release the control knob immediately after the pilot flame appears. The thermocouple requires sufficient heat exposure to generate the 30 millivolts required to energize the electromagnetic safety shut-off valve.
Step 5: Release the Knob and Rotate to the On Position
Carefully release the control knob after the 60-second heating window. The pilot flame should remain lit and stable. If the flame extinguishes immediately upon release, the thermocouple has not generated enough millivoltage, and you must repeat steps two through four. Once the pilot flame stays lit autonomously, rotate the control knob counterclockwise from PILOT to the ON position. Turn your wall switch, remote control, or thermostat to the active setting to ignite the main burner.
How to Light a Gas Fireplace with a Pilot Light Safely ⋆ ctf.bnsf.com
Gas Fireplace Ignition Systems and Technical Parameters
| Ignition System Type | Power Source | Standing Pilot Flame | Common Failure Mode | Typical Lifespan |
|---|---|---|---|---|
| Millivolt Standing Pilot | Thermocouple Generated (No external power) | Yes, burns continuously | Soot buildup, failing thermocouple | 10–15 years |
| Electronic Intermittent (IPI) | 120V AC / Battery Backup | No, lights on demand | Igniter electrode gap drift, dead batteries | 8–12 years |
| Direct Vent Millivolt | Millivolt Generator (Thermopile) | Yes, burns continuously | Vent blockage, low gas supply pressure | 12–20 years |
Troubleshooting Common Fireplace Pilot Ignition Failures
Addressing ignition problems requires a systematic approach to isolate electrical, mechanical, and fuel-delivery issues within the fireplace unit.
- Root Cause: The pilot flame lights successfully, but it goes out the exact moment the control knob is released.
- Actionable Fix: Clean the thermocouple tip with fine emery cloth or a wire brush to remove soot and carbon accumulation. If cleaning fails, use a multimeter to test the thermocouple output; replace it if it produces less than 15 millivolts under flame.
- Root Cause: Pressing the piezoelectric igniter button produces no visible spark at the pilot assembly.
- Actionable Fix: Inspect the igniter electrode wire for looseness, disconnection, or cracked ceramic insulation. Adjust the gap between the igniter electrode tip and the pilot hood to approximately one-eighth of an inch for optimal spark generation.
- Root Cause: The control knob cannot be depressed or will not rotate smoothly into the pilot position.
- Actionable Fix: Ensure you are pushing the knob straight inward with adequate force, as many modern valves feature child-safety locking mechanisms. Avoid forcing the knob with pliers, which can shear the internal brass valve stem.
Frequently Asked Questions
Why does my gas fireplace pilot light blow out frequently?
A pilot flame can extinguish due to drafts entering through the direct-vent glass seal, a partially clogged pilot orifice, or a malfunctioning thermocouple. Inspect the exterior vent cap for debris blockages and verify that the glass gasket is airtight to maintain stable combustion pressures.
Can I light my gas fireplace pilot without an igniter button?
Yes, you can manually light the pilot using a long-reach fireplace match or a butane utility lighter. Follow the standard procedure by turning the valve to pilot, depressing the safety knob, holding the flame directly against the pilot hood, and keeping the knob depressed for up to 60 seconds.
How much gas does a standing pilot light consume?
A standard standing pilot light consumes approximately 300 to 500 BTUs of natural gas or propane per hour. While this translates to a modest monthly fuel usage, turning the pilot off during the warm spring and summer months can yield noticeable utility cost savings.
What should I do if I smell gas near my fireplace?
Immediately turn the gas control knob to the OFF position, extinguish all open flames or smoking materials in the area, and leave the room or building. Contact your local gas utility emergency services or a licensed HVAC technician to perform a professional leak-detection pressure test before operating the appliance again.
How often should a gas fireplace be professionally serviced?
Gas fireplaces should undergo professional inspection and maintenance by a certified technician at least once every year, ideally right before the autumn heating season begins. Routine maintenance includes cleaning the glass, testing safety switches, inspecting the burner ports, and verifying proper venting performance.
