How To Locate A Ground Fault: A Professional Diagnostic Guide
Locating a ground fault requires a systematic methodology involving insulation resistance testing, current vector analysis, and systematic circuit isolation to identify where a conductor’s path to ground has been compromised. By utilizing a megohmmeter (megger) to confirm the fault and a clamp-on ground fault tracer or signal injector to isolate the specific branch, technicians can effectively pinpoint the failure point within an electrical distribution system while adhering to NFPA 70E safety standards.
Pre-Procedure Diagnostic Requirements and Safety Protocols
Before attempting to locate a ground fault, you must verify the structural integrity of the electrical environment and ensure adherence to Lockout/Tagout (LOTO) procedures. A ground fault occurs when an unintended conductive path connects an energized conductor to the earth, equipment chassis, or ground-fault circuit interrupter (GFCI) return path. Failure to isolate the system correctly can lead to arc flash hazards or equipment damage.
Essential Diagnostic Equipment:
- Insulation Resistance Tester (Megohmmeter) capable of at least 500V or 1000V DC output.
- Digital Multimeter (True RMS) with Category III or IV rating for voltage verification.
- Clamp-on ground fault locator (signal generator and receiver set) for underground or concealed wiring.
- Non-contact voltage tester for rapid screening.
- Proper PPE: Arc-rated clothing, insulated gloves (Class 0 or higher), and safety goggles.
Prerequisite Standards and Knowledge:
- Understand the National Electrical Code (NEC) Article 250 regarding grounding and bonding.
- Knowledge of the circuit’s physical topography and wire routing diagrams.
- Confirmation that all sensitive electronic loads (PLCs, VFDs, computer systems) have been disconnected or bypassed to prevent insulation breakdown during the Megger test.
Project Benchmarks:
- Duration: 30 minutes for simple branch circuits to several hours for complex industrial distribution networks.
- Complexity: Moderate to high depending on the extent of buried or inaccessible wiring.
Systematic Methodology for Isolating Electrical Ground Faults
Step 1: Verification of the Fault Condition
Before initiating the hunt, confirm the fault exists using a multimeter. Measure resistance between the suspect energized conductor and the equipment grounding conductor (EGC) with all power sources removed. A reading nearing zero ohms confirms a dead short or ground fault, while a fluctuating reading indicates a high-impedance ground fault or tracking through insulation degradation.
Warning: Never attempt to measure resistance on a circuit that is energized. Always confirm a zero-energy state using a known-live test source before touching leads to conductors.
Step 2: System Isolation and Zoning
Divide the electrical system into distinct zones by opening circuit breakers or disconnecting terminal blocks. Start at the main distribution panel and work outward toward the branch circuits. If the ground fault clears after opening a specific breaker, the fault is located downstream of that device. Continue this process of splitting the circuit in half (the binary search method) to isolate the segment containing the compromised insulation.
Step 3: Megohmmeter Insulation Testing
For ungrounded systems or high-resistance grounded systems, apply a test voltage using a Megohmmeter. Set the voltage to twice the system’s operating voltage plus 1000V for standard diagnostic testing. If the insulation resistance value drops below the manufacturer’s specifications or standard thresholds (typically 1 megohm per 1000 volts of operating voltage), the cable insulation is the likely site of the ground fault.

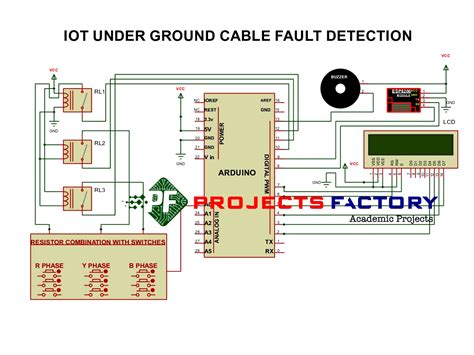

Step 4: Signal Injection and Tracing
Once the specific branch is isolated, use a ground fault tracer. Connect the signal generator between the faulted conductor and the ground plane. The generator will inject a specific frequency signal onto the wire. Use the handheld receiver to follow the signal along the physical path of the wire. The signal will stop or significantly diminish immediately after the point of the ground fault, indicating where the current is bleeding to the earth.
Pro-Tip: If you are tracing buried wiring, ensure your receiver is calibrated to the frequency of the transmitter to avoid picking up interference from adjacent utility lines or buried metallic conduits.
Ground fault detector for vehicle - Eureka | Patsnap
Technical Parameters and Insulation Threshold Comparison
Understanding the difference between acceptable resistance and failure states is critical for accurate diagnosis. Use the following metrics when evaluating your readings.
| Test Parameter | Acceptable/Passing Value | Failing/Fault State | Notes |
|---|---|---|---|
| Insulation Resistance (600V) | > 100 Megohms | < 1 Megohm | Readings below 1M often indicate moisture or carbon tracking. |
| Continuity to Ground | Infinite Ohms | < 5 Ohms | A value of zero ohms indicates a direct, low-impedance ground fault. |
| Voltage Unbalance | < 2% | > 5% | High unbalance in a three-phase system often precedes a phase-to-ground fault. |
| Leakage Current | < 1 mA | > 5 mA | Significant leakage suggests failing dielectric materials or damaged jackets. |
Common Failure Scenarios and Field Remediation Tactics
Ground faults are rarely arbitrary; they are usually the result of mechanical stress, environmental ingress, or component age. Address these common failures to prevent recurrence.
Root Cause: Moisture Ingress in Junction Boxes
- Actionable Fix: Inspect all outdoor and wet-location enclosures for compromised gaskets or damaged seals. Use silicone-based dielectric grease on terminal connections and ensure proper strain relief/sealing at cable entry points.
Root Cause: Insulation Abrasion via Sharp Conduit Edges
- Actionable Fix: When pulling wires through metal conduits, ensure bushings are installed at all pull points. If a fault is found at a sharp edge, replace the damaged wire section and verify the conduit entry is reamed and bushed to prevent future chaffing.
Root Cause: Excessive Heating of Conductors (Thermal Degradation)
- Actionable Fix: Identify loads exceeding the ampacity of the conductor. Replace the overheated wire, inspect for burnt terminal lugs, and relocate or resize the circuit conductors if the thermal load remains high.
Root Cause: Metallic Debris in Control Panels
- Actionable Fix: Conduct a thorough cleaning of the interior of control cabinets using non-conductive vacuuming methods. Inspect for stray wire strands (whiskers) that may have bridged a terminal to the grounded backplane.
Frequently Asked Questions
Can I find a ground fault without turning off the power?
While active monitoring systems exist in industrial settings, locating a ground fault typically requires a power-off state for safety and accuracy. Using an energized tracing tool is possible, but extreme caution must be exercised, and standard Megger testing cannot be performed on live circuits.
What is the difference between a short circuit and a ground fault?
A short circuit is a low-impedance path between two phase conductors, while a ground fault is an unintentional path between a phase conductor and the grounded system (the earth or the equipment chassis). Both represent dangerous conditions that demand immediate investigation.
Why does my GFCI breaker keep tripping even after I replace it?
If a new GFCI device continues to trip, the issue is not the breaker but an actual ground fault downstream in the circuit wiring. Perform an insulation resistance test on the branch wires to determine if there is a real leakage path existing somewhere in the load side.
How often should I perform insulation resistance testing?
In critical industrial environments, insulation testing should be part of a scheduled predictive maintenance program performed annually. For residential or light commercial systems, testing is usually performed only during troubleshooting procedures when a ground fault or erratic behavior is detected.
