How To Replace Patio Screen Door Rollers Like A Professional

Replacing patio screen door rollers restores smooth sliding functionality by swapping out worn, flat-spotted nylon or steel wheels hidden inside the bottom frame corners. Successfully completing this maintenance project requires carefully unmounting the door panel, accessing the adjustment screws, matching the exact wheel profile, and realigning the track assembly for optimal tension and clearance.

Pre-Operation & Equipment Checklist

A smooth patio screen door relies entirely on intact roller assemblies that bear the weight of the frame and guide it smoothly along the upper and lower tracks. Over time, debris, dirt, and heavy foot traffic flatten the bearings or degrade the wheel material, causing the door to drag, jam, or jump off the track completely.

• Essential Tools and Materials: Flathead screwdriver, Phillips-head screwdriver, power drill with magnetic bit holder, replacement roller assemblies matching your door profile, silicone spray lubricant, wire brush, measuring tape, safety glasses, and work gloves.
• Prerequisite Knowledge and Standards: Familiarity with spring-loaded versus side-adjusting roller mechanisms, and the ability to safely remove a framed screen door without bending the aluminum extrusion corners.
• Budget and Duration Benchmarks: Estimated project cost ranges from fifteen to thirty dollars for a pair of high-quality replacement rollers, with a total completion time of thirty to forty-five minutes.

Step-by-Step Roller Replacement Execution

Step 1: Lower the Tension and Unmount the Screen Door

Begin by locating the roller adjustment screws, which are typically found near the bottom corners on the inside face or the vertical edges of the screen door frame. Turn these screws counterclockwise using a flathead or Phillips screwdriver to retract the rollers entirely into the frame, lowering the overall height of the door. Carefully lift the bottom of the screen door outward and up, tilting the top out of the overhead track guide channel, and set the panel flat on a stable work surface covered with a blanket or cardboard to prevent scratching.

Warning: Never force a sliding screen door out of its track without first retracting the adjustment screws, as forcing the panel can crack the aluminum frame corners or strip the tension springs inside the extrusion.

Step 2: Remove the Damaged Roller Assemblies

Inspect the bottom corners of the frame to determine how the rollers are secured. Some roller assemblies are held in place by a single installation screw passing through the frame into the roller housing, while others are press-fit into the hollow aluminum channel and held by friction or corner gusset fasteners. Remove any retaining screws, and gently tap the back of the roller housing with a small block of wood and a mallet if the assembly is tightly wedged inside the extrusion channel.

Pro-Tip: Take a high-resolution photograph of the old roller assembly inside the frame before removing it to ensure you purchase the correct replacement style matching your exact door brand and channel width.

Step 3: Clean the Track and Frame Channels

With the old rollers removed, take the opportunity to clean out the accumulated dirt, pet hair, and oxidized aluminum dust inside the bottom frame channel using a wire brush and a vacuum attachment. Wipe down both the upper and lower sliding tracks on the door threshold with a damp cloth and mild detergent to ensure the new rollers travel across a pristine surface. Applying a light coat of a non-staining silicone lubricant to the interior tracks prevents premature wear on the new wheels.

Step 4: Install the New Roller Assemblies

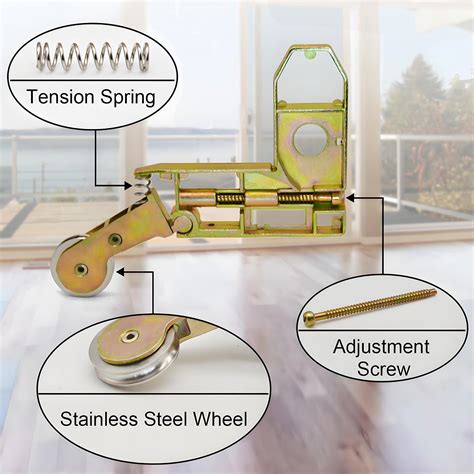

Slide the new roller assembly into the bottom channel of the screen door frame, aligning the mounting holes with the pre-drilled holes in the aluminum extrusion if your model uses retaining screws. Insert and tighten the fastening screws snugly, ensuring the wheel housing sits square and flush within the frame channel without any wobbling or tilting. If your replacement rollers feature a tension spring, make sure the spring arm rests correctly against the top interior of the channel to maintain upward pressure.

Step 5: Remount and Adjust the Sliding Alignment

Lift the screen door back into the doorway, inserting the top edge into the upper track first, and then swinging the bottom wheels down to rest squarely on the lower track. Use your screwdriver to turn the adjustment screws clockwise, raising the door until it hangs straight, glides effortlessly without dragging, and seals tightly against the door jamb when closed. Test the sliding motion multiple times, making micro-adjustments to the left and right rollers until the gap between the door and the frame is uniform from top to bottom.

Roller Assembly Typology and Technical Parameters

Common Site Failures & Field Fixes

• Root Cause: The screen door continuously jumps off the bottom track during normal sliding operations.


  • Actionable Fix: The roller adjustment screws are set too low, or the track is warped. Raise the rollers by turning the adjustment screws clockwise to increase the depth of the wheel seating inside the track channel.
• Root Cause: The new rollers produce a grinding noise or refuse to roll smoothly along the track.


  • Actionable Fix: Accumulated grit or aluminum oxidation is obstructing the wheel path. Thoroughly scrub the lower track with a wire brush and vacuum, then apply a dry silicone spray lubricant rather than a sticky grease-based product.
• Root Cause: The adjustment screw spins freely without raising or lowering the door frame.


  • Actionable Fix: The internal threads of the roller housing have stripped out due to over-tightening. Replace the entire roller assembly with a heavy-duty model featuring reinforced metal threading.

Frequently Asked Questions

How do I know which replacement rollers to buy?

Remove one of the old rollers from the door frame and measure its wheel diameter, housing width, and thickness using calipers. Take the old assembly to a hardware store or search online matching the exact mounting style, whether it features a top tension spring, a rear tension spring, or a direct side-screw mount.

Can I replace screen door rollers without taking the door down?

No, you must unmount the screen door panel from the frame to access the bottom corners and remove the old roller assemblies. Attempting to swap rollers while the door hangs in place risks damaging the aluminum frame and makes accurate track alignment impossible.

Why are my new patio screen door rollers sticking?

Sticking usually occurs because the door is adjusted too low, causing the bottom aluminum frame to drag directly against the metal threshold instead of riding on the wheels. Turn the adjustment screws clockwise to elevate the frame, ensuring the weight rests entirely on the roller bearings.

Are steel rollers better than nylon rollers for patio screen doors?

Steel rollers provide superior load-bearing capacity and longevity for heavy doors exposed to intense UV rays and frequent use, though they can produce slightly more operational noise than smooth nylon wheels. Nylon rollers work exceptionally well for lightweight standard residential screen frames.
