How To Tension A Drive Belt: Precise Adjustment Methods For Automotive And Industrial Systems

Tensioning a drive belt correctly requires measuring the span length and applying the standard rule of 1/64-inch deflection per inch of span length, or utilizing a sonic tension meter to achieve exact frequency values measured in Hertz. Proper drive belt tension eliminates slippage, prevents premature alternator or pump bearing destruction, and maximizes mechanical power transfer efficiency. Executing this calibration involves identifying the specific mechanism—whether an automatic spring-loaded arm, manual slide bracket, or lead-screw adjuster—and locking retaining bolts to exact manufacturer torque specs.

Essential Diagnostic Tools & Pre-Tensioning Preparation

Achieving precise belt tension demands systematic preparation, clean pulley geometry, and specialized measuring equipment. Relying on visual estimates or thumb pressure alone frequently leads to either under-tensioning (causing belt slip, glazing, and heat degradation) or over-tensioning (causing radial shaft overload and early bearing failure).

Equipment & Tool Requirements

• Primary Measurement Tools: Mechanical pencil-style tension gauge, Krikit tension gauge, or digital sonic tension meter.
• Hand Tools: Socket set with breaker bar, open-end wrenches, torque wrench (ft-lbs and in-lbs), pry bar, and alignment straightedge.
• Consumables & Safety Gear: Brake cleaner/degreaser, lint-free shop towels, mechanics gloves, protective eyewear, and thread-locking compound.

Mandatory Prerequisite Knowledge & Standards

• Deflection Rule Standard: 1/64 inch (0.4 mm) of belt deflection per 1 inch (25.4 mm) of unsupported belt span length.
• Span Distance Formula: Measure the distance center-to-center between the pitch points of the two adjacent pulleys.
• Run-In Protocol: Brand new belts stretch during initial operation; tension must be checked immediately after installation and re-measured after a 15 to 30-minute thermal run-in period.

Operational Benchmarks

• Estimated Duration: 30 to 60 minutes for automotive serpentine systems; 45 to 90 minutes for industrial V-belt/timing drive systems.
• Estimated Budget: $15 to $150 (depending on whether utilizing basic mechanical gauges or advanced optical/acoustic measuring tools).

Step-by-Step Drive Belt Tensioning Workflow

Step 1: Inspect Mechanical Components and Measure Belt Span

Begin with the equipment completely powered off, lockouts applied, and the engine or motor cooled to ambient temperature. Clean all pulley grooves using a stiff wire brush and degreaser to remove oil film, rust scale, or rubber particulate buildup. Inspect the belt for rib separation, dynamic glazing, micro-cracking, or missing teeth.

Measure the unsupported span distance between pulley center points using a rigid measuring tape. Calculate the target deflection distance by applying the standard ratio:

$$\text{Target Deflection} = \frac{\text{Span Length (inches)}}{64}$$

For example, a 16-inch unsupported span requires exactly 1/4-inch (4/16-inch or 16/64-inch) of linear movement when applying standard test force perpendicular to the center of the span.

Warning: Never apply belt dressing or spray lubricants to stop squealing during tension adjustments. Chemical compounds degrade synthetic EPDM rubber compounds, attract debris, and mask critical alignment or tensioning faults.

Step 2: Identify and Unseat the Tensioning Mechanism

Locate the specific tensioning assembly designed into your powertrain equipment. Powertrains utilize one of three primary tensioning formats:

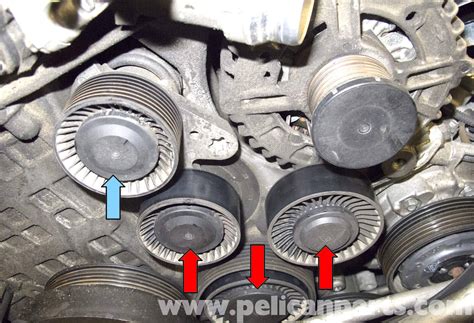

1. Automatic Spring-Loaded Tensioner: Found in modern automotive serpentine layouts. The tensioner arm relies on an internal torsion spring. Check the wear indicator marks cast into the housing. If the indicator mark rests outside the operational dynamic zone, the internal spring has failed, or the belt has stretched beyond service limits.
2. Manual Pivot/Adjustment Arm (Alternator/Generator Style): Uses a primary pivot bolt and a curved adjustment slot locking bolt. Loosen the main pivot bolt first, then loosen the slot adjustment bolt 1 to 2 turns until the component moves freely.
3. Lead-Screw / Sliding Motor Base: Common in industrial air compressors and heavy HVAC machinery. Loosen the four motor mounting plate bolts, then turn the jack-screw bolt to move the driver component backward or forward smoothly.

Step 3: Apply Load and Execute Precision Tension Measurement

Select the appropriate tensioning technique based on your available diagnostic equipment:

Method A: Mechanical Pencil Tension Gauge (Force & Deflection Method)

Set the lower rubber ring on the pencil gauge body to the calculated target deflection distance (e.g., 1/4 inch). Position the large rubber O-ring on the force scale shaft to zero. Press the rubber tip of the gauge squarely against the center of the belt span. Push downward at a 90-degree angle until the lower deflection ring aligns horizontally with the top edge of an adjacent straightedge laid across the pulleys. Read the applied force (in pounds or kilograms) indicated by the force O-ring. Compare this value to the belt manufacturer’s recommended force table.

Method B: Sonic / Acoustic Tension Meter (Frequency Method)

Input the belt's unit mass, belt width, and span length into the digital sonic meter receiver. Pluck the belt span gently like a guitar string using a small screwdriver or your thumb. Hold the sonic sensor probe 3/8 to 5/8 inches (10 to 15 mm) away from the belt surface. The meter analyzes the fundamental harmonic vibration frequency and displays the reading in Hertz (Hz) or total static tension in Newtons/Pounds. Adjust the manual tensioning mechanism until the vibration frequency matches the target Hz spec precisely.

Pro-Tip: When tensioning a brand-new belt, target the upper limits of the manufacturer's specified initial tension range. New EPDM and neoprene belts lose 10% to 15% of their initial static tension within the first few hours of dynamic operation as they bed into pulley grooves.

Step 4: Secure Hardware and Verify Dynamic Alignment

Once target deflection or frequency measurements are achieved, maintain force on manual adjustment arms using a non-marring lever or tensioning screw. Torque the lock-down bolts to specification in a staggered pattern:

1. Torque the primary sliding adjustment bolt or jack-screw locknut first.
2. Torque the main component pivot bolts to final factory engineering specs (typically 25 to 45 ft-lbs for automotive accessories; refer to industrial machinery handbooks for large frame motors).

Re-attach the tension gauge and take a final static reading to verify that tightening the mounting hardware did not shift the pulley center distance. Rotate the engine or drive shaft manually by hand through two complete 360-degree cycles to seat the belt evenly inside all pulley grooves. Re-verify tension one last time before restoring main power.

Drive Belt Tension Measurement Standards & Tolerance Specs

The table below outlines baseline tension parameters, deflection force requirements, and measurement protocols across standard industrial and automotive belt profiles.

Resolving Common Drive Belt Tensioning and Field Failures

High-Pitched Chirping or Squealing Under Acceleration

• Root Cause: Insufficient static tension causing dynamic slip between the belt backing/ribs and the pulley face under torque spikes. Alternatively, angular misalignments exceeding 0.5 degrees cause rib-entry noise as the belt feeds into the pulley grooves.
• Actionable Fix: Measure belt tension using a sonic gauge or pencil scale. If tension reads below used-belt threshold minimums, loosen mounting hardware and increase tension until reaching target parameters. Check pulley alignment across driver and driven shafts using a laser alignment tool or precise straightedge.

Premature Shaft Bearing Failure or Excessive Heat at Shaft Ends

• Root Cause: Severe over-tensioning. Excessive static vector load pulls shafts toward each other, causing extreme side-loading on deep-groove ball bearings, needle bearings, or pump seals.
• Actionable Fix: Immediately release mounting tension on manual slide frames. Spin pulleys by hand to check for rough, gritty, or noisy bearing rotation. Replace damaged bearings, re-install the belt, and set tension precisely to the manufacturer's low-to-mid range specification using dynamic acoustic verification.

Accelerated Rib Wear, Flaking, or Edge Fraying

• Root Cause: Belt running misaligned or operating under incorrect tension specs, forcing the structural tensile cords (fiberglass or aramid) to ride up against pulley flanges.
• Actionable Fix: Inspect pulley alignment for offset, parallel, or angular error. Inspect tensioner arm dampening; a worn automatic tensioner damper allows dynamic belt flutter, leading to cord breakage and structural rib detachment. Replace damaged belts and worn tensioners simultaneously.

Tensioner Pulley Chatter or Visual Belt Whip

• Root Cause: Resonance occurring due to improper static tension or a broken internal dampening mechanism within an automatic tensioner assembly. Drive system torsional vibrations match the natural frequency of the loose belt span.
• Actionable Fix: Re-tension manual drive systems to shift the belt's natural frequency out of the operational engine/motor RPM harmonic range. On automatic tensioner systems, replace the entire tensioner assembly rather than just the pulley wheel to restore proper internal spring rate and dampening force.

Frequently Asked Questions

How do I know if my drive belt is under-tensioned vs over-tensioned?

An under-tensioned belt slips under heavy loads, causing loud squealing, reduced charging output, low AC performance, and visible belt flutter along long spans. An over-tensioned belt runs silently but causes extreme heat build-up, rapid belt stretching, and early bearing failure in accessories like the alternator, water pump, or idler pulleys.

What is the standard deflection rule for manually tensioned V-belts?

The industry standard rule is 1/64 inch of deflection for every 1 inch of unsupported belt span. To apply this, measure the span distance between pulley contact points in inches, divide by 64, and apply mid-span force until the belt deflects that precise distance.

Can I accurately set drive belt tension without a specialty gauge?

While specialized tools like sonic meters or mechanical force gauges provide the highest precision, you can estimate tension using the thumb-pressure method. Push firmly on the midpoint of the longest unsupported belt span; the belt should deflect roughly 1/4 to 1/2 inch (6 to 12 mm) under firm thumb force (approximately 10 lbs of force). However, critical timing and multi-rib serpentine belts should always be set using a dedicated measurement tool to ensure component longevity.

How often should I check and readjust tension on a newly installed drive belt?

New belts stretch during their initial bed-in period. You should set the tension higher (to new-belt specifications) upon initial installation, run the machine or vehicle under normal operating loads for 15 to 30 minutes, shut down the engine safely, and re-check the tension. Afterwards, inspect tension during routine maintenance intervals every 10,000 to 15,000 miles or 500 operating hours.

Should automatic belt tensioners ever be manually adjusted?

No, automatic tensioners rely on an internal calibrated spring and internal dampening mechanism to maintain correct tension dynamically. If an automatic tensioner allows belt slip, chatters continuously, or positions its alignment indicator outside the cast housing marks, the assembly is worn out and must be replaced rather than manually adjusted.

Upgrade Your Powertrain Reliability with Precision Maintenance

Mastering drive belt tensioning protects critical engine accessories and industrial machinery from unexpected downtime and costly bearing repairs. Ensure your operations run smoothly by adopting precision measurement protocols, utilizing calibrated acoustic tension meters, and replacing worn drive hardware at the first sign of mechanical fatigue.
