How To Wire Speakers In Parallel: Complete Step-by-Step Audio Engineering Guide
Wiring speakers in parallel connects all positive amplifier terminals to the positive speaker terminals and all negative terminals together, which effectively halves the total electrical load impedance seen by your amplifier. Mastering this configuration allows you to safely drive multiple low-impedance acoustic transducers without triggering amplifier thermal protection or distortion limits.
Pre-Operation & Equipment Checklist
Setting up a parallel speaker array requires a thorough understanding of electrical resistance, power handling limits, and amplifier capabilities. Before running any cable or stripping wire insulation, verify that your audio hardware can physically handle the drop in impedance. Operating an amplifier below its minimum rated load can cause permanent hardware failure, making accurate math and correct tool selection mandatory.
- Essential gear, tools, and materials: 14-gauge to 16-gauge oxygen-free copper (OFC) speaker wire, wire strippers, digital multimeter for continuity and resistance testing, and an amplifier rated for low-impedance loads (typically 2 ohms or 4 ohms stable).
- Mandatory prerequisite knowledge and standards: Ohm's Law for parallel circuits, understanding speaker nominal impedance (measured in ohms), and matching continuous RMS power handling ratings across all connected cabinets.
- Estimated budget and duration benchmarks: Financial investment ranges from twenty to fifty dollars for quality copper wire; total execution time requires twenty to thirty minutes of meticulous terminal management.
Step-by-Step Parallel Wiring Execution
Executing a parallel wiring scheme requires methodical cable routing and strict polarity discipline. Reversing the positive and negative connections on even a single speaker introduces phase cancellation, which drastically degrades low-frequency response and stereo imaging.
Step 1: Calculate the Combined Load Impedance
Calculate your final impedance using the standard parallel resistance formula before touching any physical hardware. For two identical speakers (such as two 8-ohm cabinets), the parallel impedance is calculated by dividing the individual impedance by the number of speakers, yielding a 4-ohm load.
Pro-Tip: If you are connecting two speakers of different impedances, use the product-over-sum formula where total impedance equals the product of the two impedances divided by their sum.
Step 2: Prepare and Strip the Speaker Cable
Measure the distance from your audio amplifier output channels to each individual speaker location, leaving a ten percent slack buffer for clean cable management. Strip approximately one-half inch of insulation from the ends of your copper speaker wire using a calibrated wire stripper, taking care not to nick or shear the fine inner strands. Twist the exposed bare copper strands tightly in a clockwise direction to prevent stray strands from creating dangerous electrical shorts across adjacent terminals.
Warning: Never leave stray copper strands exposed outside the terminal binding posts, as a single loose strand bridging the positive and negative terminals can instantly fry your amplifier's output stage.

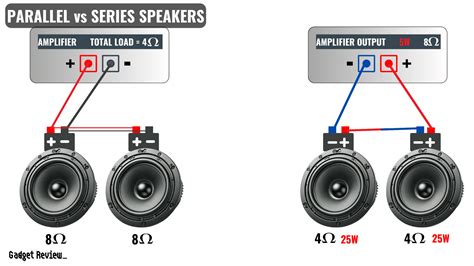

Step 3: Connect the Positive Terminals in Common
Route your primary speaker wire running from the amplifier positive output terminal to the first speaker's positive terminal (marked with a red indicator or a plus sign). From that first speaker's positive terminal, attach a secondary jumper wire running directly to the positive terminal of the second speaker. This daisy-chain or parallel bus configuration ensures that every speaker in the array receives the identical positive voltage potential directly from the amplifier source.
Step 4: Connect the Negative Terminals in Common
Take the negative conductor of your main speaker wire (typically marked with a black stripe, ribbed insulation, or a minus sign) and secure it firmly to the negative terminal of the first speaker. Run a corresponding jumper wire from that first speaker's negative terminal to the negative terminal of the second speaker. Double-check all physical connections by giving a gentle tug on each wire to confirm the binding posts or spring clips have clamped down securely onto the bare copper conductor.
Step 5: Verify System Impedance and Test Audio Output
Set your digital multimeter to the lowest resistance (ohms) scale and measure the total resistance across the main amplifier-side speaker leads before plugging them into the power amplifier. The multimeter reading should closely match your calculated theoretical parallel impedance, accounting for a minor fractional increase due to DC wire resistance. Connect the wires to your amplifier, power on the system at a low volume level, and perform a listening test to verify balanced output and correct phase alignment across all drivers.
How To Match Amp With Subwoofer Series Vs Parallel Subwoofer Wiring ...
Comparative Impedance and Wiring Topologies
| Parameter | Series Wiring | Parallel Wiring | Series-Parallel Hybrid |
|---|---|---|---|
| Impedance Formula | Sum of all loads ($Z_1 + Z_2$) | Reciprocal sum ($1 / Z_1 + 1 / Z_2$) | Combined series and parallel calculation |
| Total Load Effect | Increases total impedance | Halves or decreases total load | Stabilizes load to match amp rating |
| Amplifier Stress | Lowers current draw, reduces power | Increases current draw, increases power | Balanced current and thermal draw |
| Failure Implication | One break cuts signal to all speakers | One speaker fails, others keep playing | Localized failure isolates the fault |
Common System Failures and Field Fixes
Even experienced audio technicians occasionally encounter wiring mistakes or impedance mismatches when deploying multi-speaker arrays. Recognizing these common failure modes ensures rapid troubleshooting and protects expensive audio hardware from catastrophic thermal events.
- Root Cause: Amplifier entering protection mode or shutting down immediately upon receiving an audio signal.
- Actionable Fix: Power down the system instantly, disconnect the speaker leads, and measure the total parallel load with a multimeter. If the resulting impedance drops below your amplifier's minimum stable rating (such as running a 2-ohm load on an amp rated exclusively for 4 ohms), reconfigure your wiring to a series or hybrid topology.
- Root Cause: Weak, hollow sound with a total lack of bass response and muddy stereo imaging.
- Actionable Fix: Inspect all terminal connections for reversed polarity. If even one speaker has its positive and negative wires flipped, it will play out of phase, causing acoustic cancellation of low frequencies across the listening environment.
- Root Cause: Intermittent audio dropouts or severe crackling noise during playback.
- Actionable Fix: Check for loose binding posts, oxidized copper strands, or frayed wire ends touching the metal chassis of the amplifier or speaker cabinet. Strip back the wire to expose fresh, unoxidized copper and re-secure every connection tightly.
Frequently Asked Questions
What happens to amplifier power when speakers are wired in parallel?
When you wire speakers in parallel, the total load impedance drops, which causes most solid-state amplifiers to deliver more electrical current and output higher wattage. However, you must ensure your specific amplifier model is officially rated to handle lower impedance loads safely without overheating. Exceeding the current limits of an amplifier will cause distortion, clipping, and thermal shutdown.
Can I mix different brands and wattages in a parallel speaker setup?
Yes, you can mix different speakers, but it requires careful mathematical calculation of impedance and power distribution. In a parallel circuit, every speaker receives the exact same voltage from the amplifier, but power distribution will favor the speaker with the lower impedance value. Always ensure that the lowest-impedance speaker does not force the total parallel load below your amplifier's safe operating threshold.
How many speakers can I safely wire in parallel?
The maximum number of speakers depends entirely on the nominal impedance of each individual driver and the minimum impedance rating of your amplifier. For example, starting with 8-ohm speakers and an amplifier stable down to 2 ohms, you can wire a maximum of four speakers in parallel to achieve a safe 2-ohm total load. Adding a fifth speaker would drop the load to 1.6 ohms, risking permanent amplifier damage.
Is parallel wiring better than series wiring for home audio?
Parallel wiring is generally preferred for standard multi-speaker setups because it maintains independent signal paths, meaning if one speaker wire fails or a driver blows, the remaining speakers continue to play. Series wiring shares a single current path through every speaker sequentially, so a single break disables the entire audio chain. However, series wiring is useful when you need to increase total impedance to protect a fragile amplifier.
